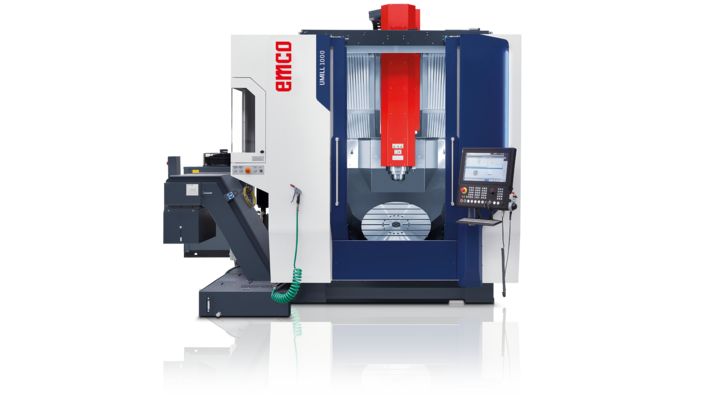

Universal Machining Center UMILL 1000
Universal Machining Center UMILL 1000
[Translate to en:]

Universal Machining Center UMILL 1000

EQUIPMENT

5-axis simultaneous machining in a gantry structure
Top thermostability
Universal machining center with top machining precision
Modern moving column concept with optimal accessibility
Solid swivel-rotary table with torque motors, direct measuring systems dimensions of Ø 800 mm provide high stability and precision
Wide swivelling range +/-125°
Standard linear scales in X-Y-Z
Cutting-edge control technology from Siemens or Heidenhain
EMCONNECT available for Sinumerik
Extensive options such as 60 / 90 tool stations magazine
Optimal chip removal
Flexible for automation (front)

Technical data

Work area

Travel in X/Y/Z 900 mm / 1000 mm / 700 mm
Distance spindle nose 150 / 650 mm
Axes feed rate 15 m/min
Rapid motion speeds in X/Y/Z 50 m/min
Table 1000 kg
Clamping area 800 x 800 mm
Max. table load 1000 kg

Highlights

  • 5-axis simultaneous machining in a gantry structure

  • Top thermostability and universal machining center with top machining precision

  • Modern moving column concept with optimal accessibility

  • Wide swivelling range +/-125°

  • Standard linear scales in X-Y-Z

  • Cutting-edge control technology from Siemens or Heidenhain

  • EMCONNECT available for Sinumerik

  • Extensive options such as 60 / 90 tool stations magazine

  • Optimal chip removal

  • Flexible for automation (front)

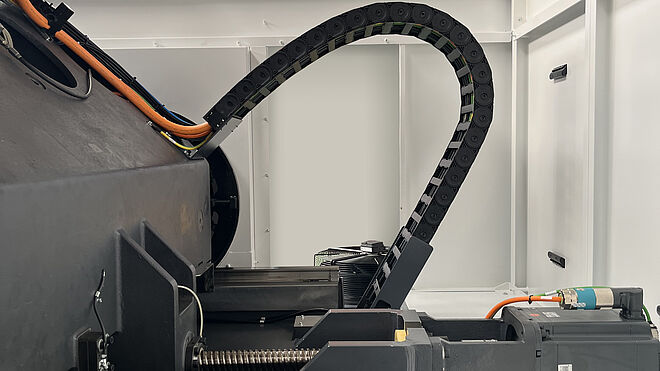

DIRECT DRIVES

The direct dirves in X- and Y-axis allow to reach high performances in acceleration (6 m/s²) and in rapid motion speeds (50 m/min). In addition, this ensures maximum precision and high dynamics.
View image

SWIVEL-ROTARY TABLE

Solid swivel-rotary table with torque motors, direct measuring systems dimensions of Ø 800 mm provide high stability and precision
View image

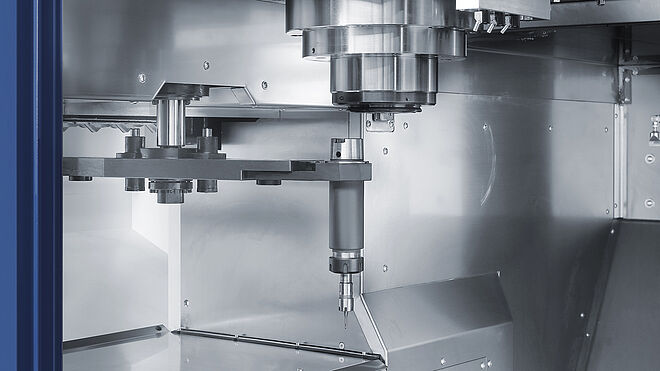

TRAVEL RANGE

With a travel range of +/- 125°, the A-axis provides a larger work area than most products from other manufacturers. The C-axis can be infinitely rotated by 360°.
View image

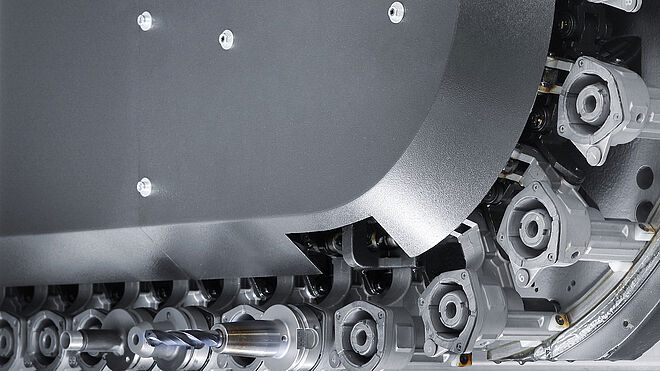

TOOL CHANGER

Tool changer with space for 30 tools. 60 or 90 optionally available.
View image

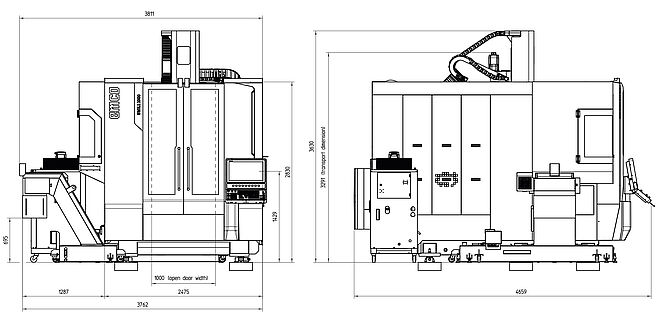

Overall dimensions/Work space

Umill1000_K_EN_RZ.indd

View image

Umill1000_K_EN_RZ.indd

View image

Umill1000_K_EN_RZ.indd

View image

Software/Control

Sinumerik ONE with Operate

The Sinumerik ONE is the universal and flexible CNC system. With a wide range of functionality, it is suitable for use in almost all technologies. The Sinumerik ONE sets standards in terms of dynamics, precision and integrability in networks.

With the Sinumerik ONE you rely on:

  • highest performance and flexibility
  • universal openness
  • highly effective personal and machine protection

Sinumerik & EMCONNECT, the digital process assistant
EMCONNECT is included in the standard machine. Switching between emcoNNECT apps and the control system is possible with a single click. All production-relevant data can be displayed in full-screen or sidebar view.

The new SINUMERIK ONE has been specially developed for smart manufacturing.

  • Digital twin is an integral part of the CNC control, virtual and real control merge and complement each other
  • Significant reduction in product development and time-to-market thanks to the digital first strategy
  • Improved networking and data communication capabilities
  • Significant reduction in the duration of real commissioning through virtual preparation for commissioning
  • Significantly increased CNC performance
  • Significantly shorter non-productive times and complete integration into the TIA Portal through the integrated SIMATIC S7-1500F PLC

This means that the SINUMERIK ONE can be seamlessly integrated into digital solutions and workflows.

Show details Hide details
[Translate to en:]

Heidenhain TNC 7

With the new TNC7 control from HEIDENHAIN, users and machine tool builders experience completely new possibilities in the programming and operation of their machines.
Because operation is intuitive, task-oriented and customised, making work in the workshop faster, safer and more pleasant.

Highlights of the Heidenhain TNC 7:

  • 24 control loops, 4 of which are spindles
  • Very high operating dynamics and fluid, intuitive multi-touch operation
  • Milling and turning operations
  • Intuitive set-up of workpieces with smart probing functions
  • Graphically supported alignment of clamping devices
  • Short block processing time (0.5 ms)
  • High-end performance for perfect surfaces and highest accuracy
  • Integrated process monitoring

Show details Hide details

Download

Universal-Machining-Center-UMILL-1000.pdf 02.04.2025
Preview Download
EMCONNECT_Your_guide_in_technology.pdf 08.07.2024
Preview Download
