Concept Mill 55
Concept Mill 55

Concept Mill 55

EQUIPMENT

Compact CNC desktop Milling machine
High-resolution axis motors
Stepless variable main drive
Industrial quality components
Engraving Spindle Facility
NC dividing unit as an optional fourth axis
Robotic interface for integration into FFS/CIM systems
Safety technology according to CE
Made in the Heart of Europe

Technical data

Work area
Travel in X/Y/Z 190/140/260 mm
Distance spindle nose 77 - 337 mm
Number of axes (basic machine) 3rd (4th axis optionally)
Rapid motion speeds in X/Y/Z 2 m/min
Work feed X/Y/Z 0-2 m/min
Feed force in X/Y/Z 800/800/1000 N
Clamping area 420 x 125 mm
Max. table load 10 kg
Milling spindle
Number of tools 8
Max. speed 3500 rpm
Max. drive power 0.75 kW
Max. torque 3.7 Nm
General data
Dimensions (LxWxH) 980 x 960 x 1000 mm
Machine weight 220 kg

Highlights

  • Stable gray cast iron construction

  • Fully covered work area

  • Clockwise/Counterclockwise spindle rotation

  • Infinitely variable main and feed drives

  • Backlash-free storage of the axis spindle in accurate angular ball bearings lubricated for life

  • Spindle bearing lubricated for life

  • CNC 3D continuous path control

  • Automatically reference points

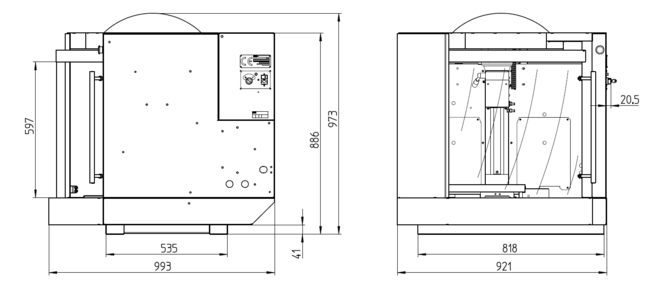

Overall dimensions/Work space

Emco Concept Mill 55: CNC milling center Setup plan

Machine layout Concept MILL 55

Machine layout Concept MILL 55
View image Emco Concept Mill 55: CNC milling center Setup plan

Workpieces

Examples of use

  • Contour milling
  • Thread milling
  • Tapping
  • Drilling
Emco Concept Mill 55: CNC milling center Application example chess pieces

Chessmen

Chessmen
View image Emco Concept Mill 55: CNC milling center Application example chess pieces
Emco Concept Mill 55: CNC milling center Application example milling piece

Milled part

Milled part
View image Emco Concept Mill 55: CNC milling center Application example milling piece
Emco Concept Mill 55: CNC milling center Piston

Piston

Piston
View image Emco Concept Mill 55: CNC milling center Piston

Options/Accessories

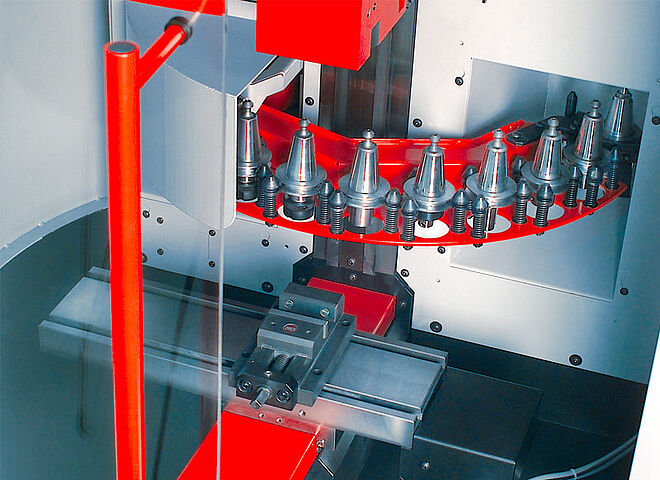

Tool turret with 8 stations

The tool change is done by a tool turret equipped with 8 stations.
View image
Emco Concept Mill 55: CNC milling center Processing main spindle

Engraving spindle attachment

The gear ratio of the spindle attachement allows engravings.
View image Emco Concept Mill 55: CNC milling center Processing main spindle
Emco Concept Mill 55: CNC milling center Indexing attachement

NC dividing unit

For the Concept Mill 55 a dividing unit representing the 4th axis is available with 3-jaw chuck, tail stock and .
View image Emco Concept Mill 55: CNC milling center Indexing attachement

Machine base

The machine base is equipped with an extendable load and provides additional space for a PC tower.

View image
Easy2operate

Easy2operate

Portable Machine Operating panel to operate the machine via hardware, includes axis buttons, feed override switch, mode switch etc. together with EMCO Easy2control.



View image Easy2operate
Electronic hand wheel

Electronic hand wheel

For moving the machine’s axes manually.

View image Electronic hand wheel

Automation

Integration into FMS and CIM systems

The robotics interface can not only control the peripheral equipment (such as automatic door, vice, etc.) but also connect the machine to other machines or devices (e.g. loading and unloading robots). The DNC interface allows programs to be started from the master computer.

View image
Emco Concept Turn 60: CNC turning lathe pneumatic wheel

Pneumatic unit

The pneumatic unit serves as a preparation for the automatic air-conditioning system and the pneumatic chuck, which consists of a pneumatic full-load cylinder including 3-jaw power chuck and blow-out device.

View image Emco Concept Turn 60: CNC turning lathe pneumatic wheel
Emco Concept Mill 55: CNC milling center Automation components

Pneumatic vice

with end position control
View image Emco Concept Mill 55: CNC milling center Automation components

Automatic door

Thanks to the pneumatic unit the machine door opens and closes automatically or by pressing the button. The monitoring of the door position is done via end switch.

View image

Software/Control

[Translate to en:]
EMCO WinNC

The unique concept of the interchangeable control can be fitted to all Concept machines. In doing so, the user is trained on all CNC industry controls that are common to the market.
The result: CNC technicians are flexible to work in a variety of settings.

Show details Hide details
[Translate to en:]
EMCO Win3D-View

Win3D-View is a 3D simulation for turning and milling and is available as an option in addition to the WinNC Control. Graphic simulations of CNC controls are designed especially for industrial experience. Win3D-View displays exceed industry standards. Tools, blanks, clamping devices, and work processes are highly realistic. The system checks the programmed travel of the tool to prevent collision with clamping devices and blanks.

Show details Hide details
[Translate to en:]
EMCO CAMConcept

CAMConcept is innovative software for complete CAD/CAM and CNC training, from design to manufacture. CAMConcept incorporates both the functions of a professional CAD/CAM system and the advantages of a special training program. All core CAD program functions are available. Graphic displays of CNC cycles allow quick programming, while simulations and collision checks ensure that control programming is safe.

Show details Hide details

Download

Lathes-Milling-Machine-Education-Concept-Turn-Mill_SEO.pdf

01.03.2024
Preview Download

Soustruhy-Frezovaci_stroje-Vzdelavani-Concept-Turn-Mill.pdf

01.03.2024
Preview Download

Tornos-Fresadoras-Formacion-Concept-Turn-Mill.pdf

01.03.2024
Preview Download
