Gantry Milling Machine Dynamill
Gantry Milling Machine Dynamill

Gantry Milling Machine Dynamill

Universal Machining center with moving crossbeam

EQUIPMENT

Longitudinal and cross movement by means of rack and pinion system
Universal Machining Centre with Ram completely guarded
Spindle motor: 60 kW 600 Nm (S1)
Mechanical milling heads 3+2 or 5 axes: 38 kW, 1000 Nm, 6000 rpm
Milling heads with high-speed spindles 5 axes: 42 kW, 120 Nm, 24000 rpm
Gantry Milling Machine with numerical controls Heidenhain or Siemens

Technical data

Work area
Travel in X/Y/Z from X: 4550 mm and more, Y: 3000 - 4000 mm, Z: 1500 - 2000 - 2500 mm
Axes feed rate 40 m/min
Table Load on floor plate 15000 kg/m²
Main spindle
Max. drive power 60 kW (S6)
Max. torque 600 Nm (S6)

Highlights

  • Gantry Milling machine with high dynamics and accuracy

  • High feed rate

  • Liquid cooled motors on all axes

  • From roughing to super-finishing

Overall dimensions/Work space

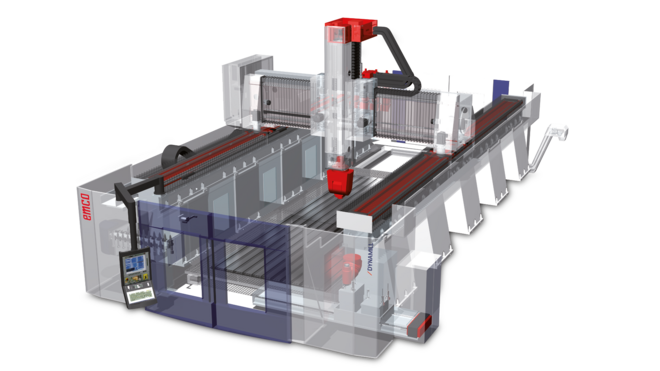

Machine layout Dynamill 2

View image

Workpieces

Examples of use

  • Schlichten eines Stempels für eine Pressform
  • Zerspanen eines Kunstharzteils

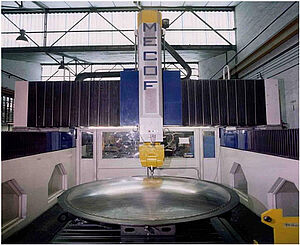

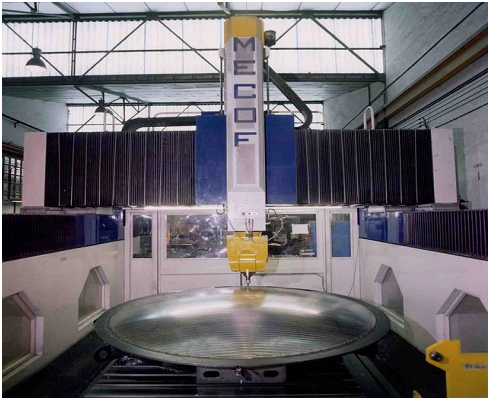

Aerospace

View image

Mold die

View image

Application Cases

aerospace

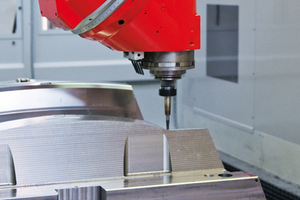

High speed machining of injection mould for bumpers in automotive industry
View image

styling

5-axis machining of a titan landing gear for aerospace industry
View image

Kategorie 5

5-axis machining of a car model section for a styling center
View image

Milling heads

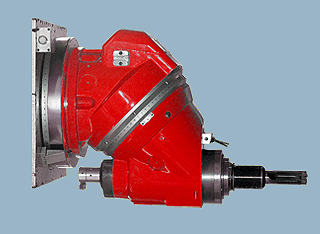

Universal Milling head with automatic millesimal positioning

Universal Milling head with automatic millesimal positioning and high speed spindle
  • 24000 rpm
  • 42 kW (S1)
  • 67 Nm (S1)
View image

Power Diagram

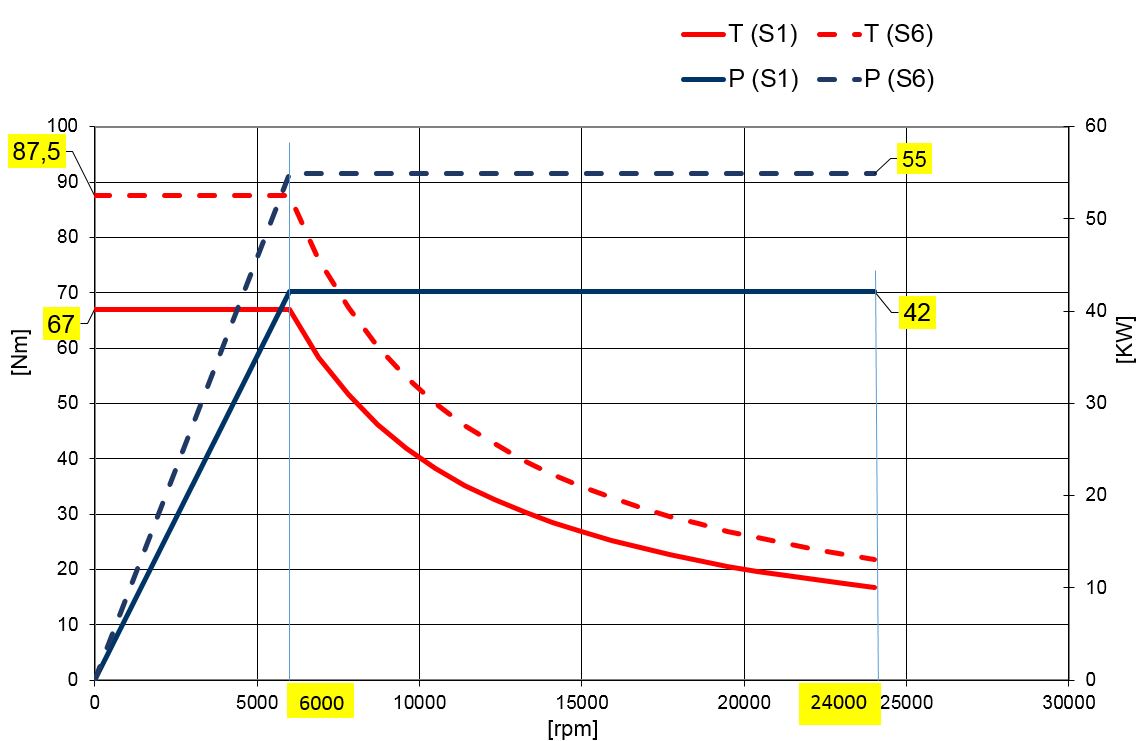

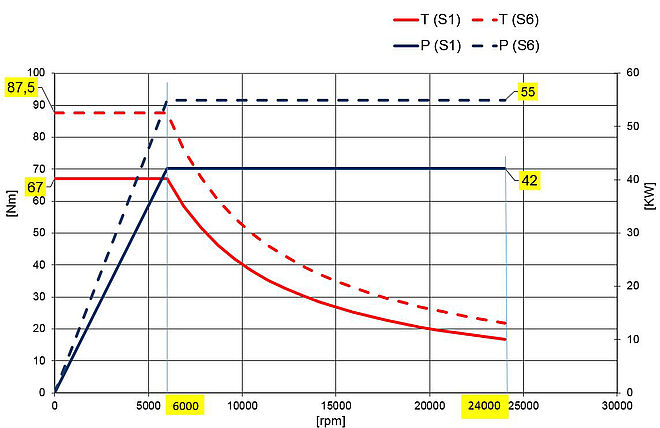

Power Diagram of Universal Milling head with automatic millesimal positioning and high speed spindle
View image

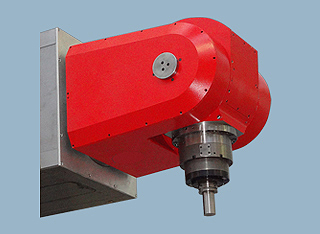

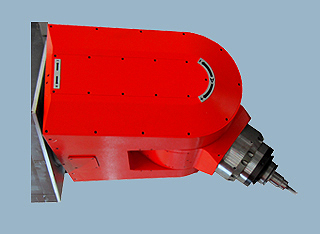

Full 5 axis fork type milling head with high speed spindle

  • 26000 rpm
  • 40,5 kW (S1)
  • 35,4 Nm (S1)
View image

Power Diagram

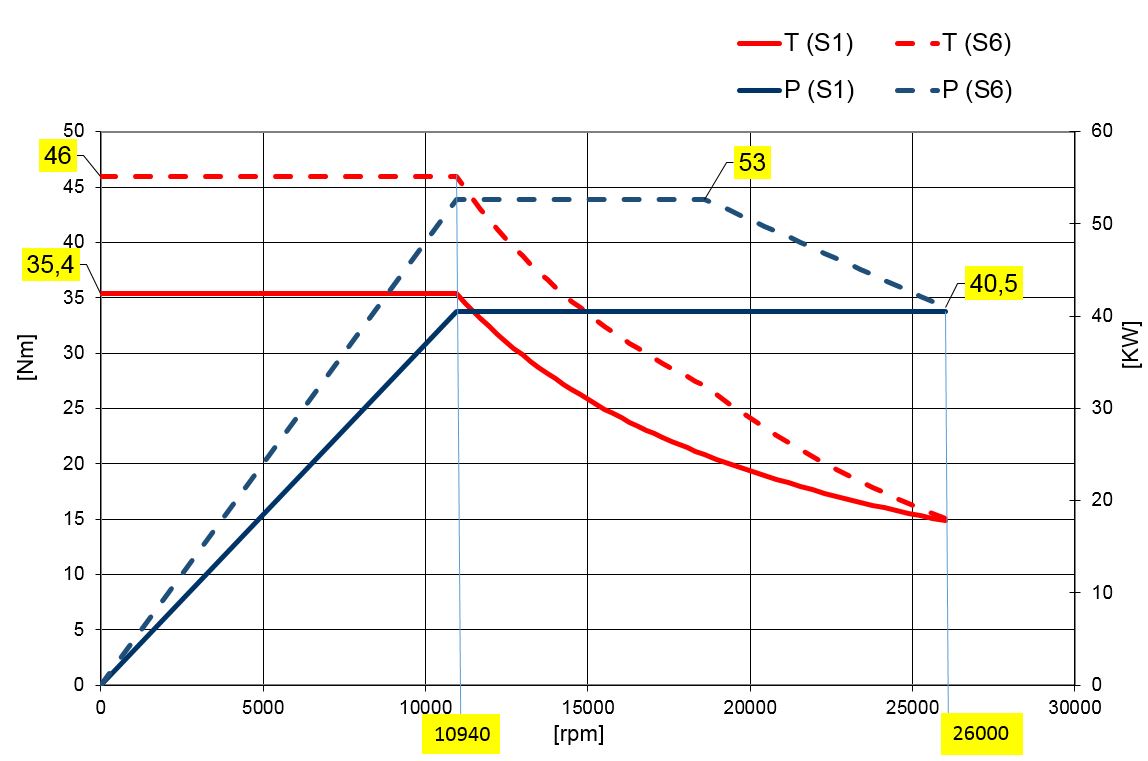

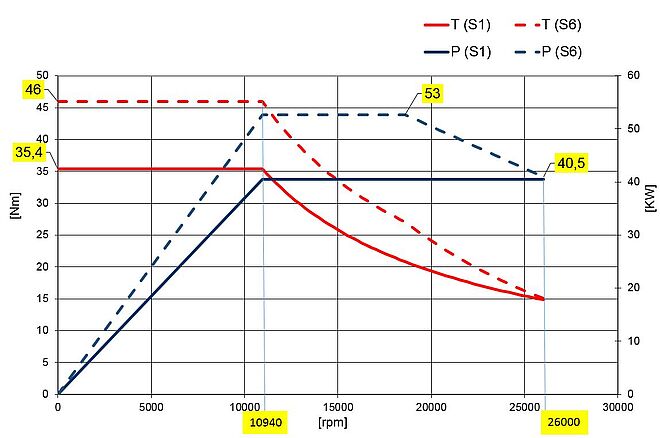

Power Diagram of Full 5 axis fork type milling head with high-speed spindle
View image

Full 5-Axis fork type milling head with high speed spindle

  • 24000 rpm
  • 42 kW (S1)
  • 67 Nm (S1)
View image

Power Diagram

Power Diagram of Full 5 axis fork type milling head with high speed spindle
View image

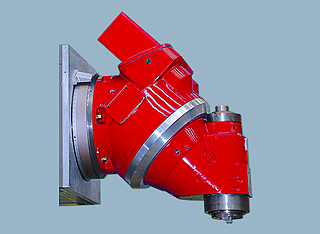

Universal Milling head with automatic millesimal positioning

  • 6000 rpm
  • 38 kW (S1)
  • 1000 Nm (S1)
View image

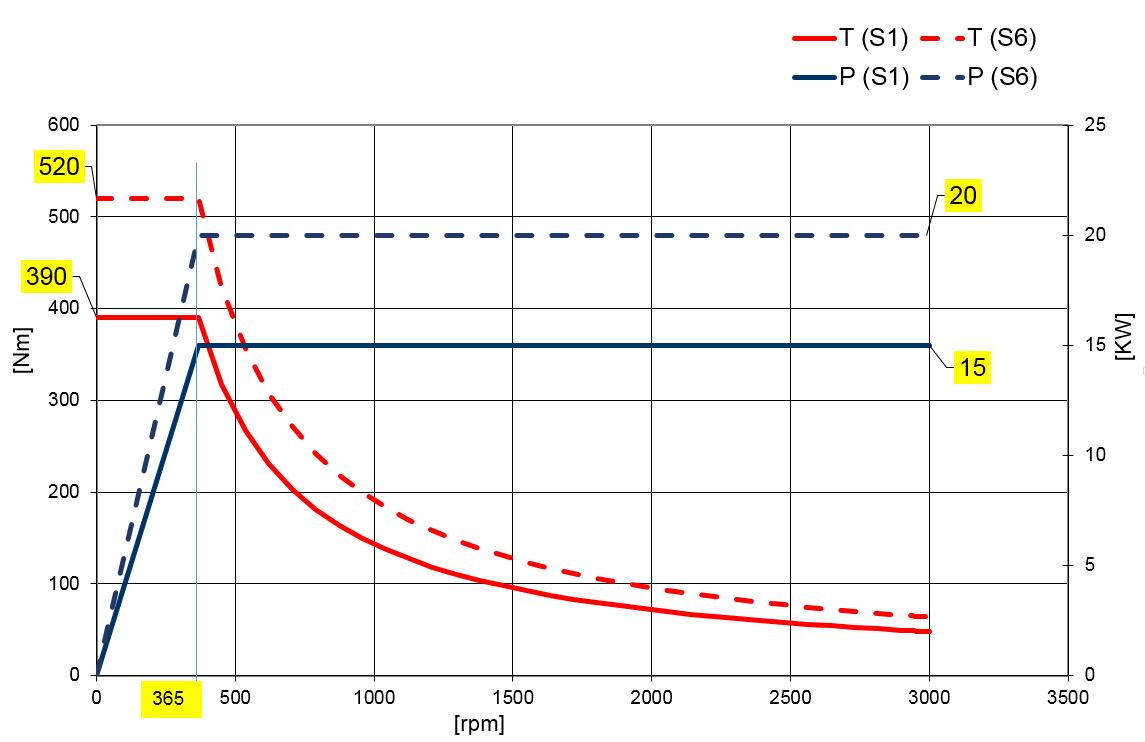

Power Diagram

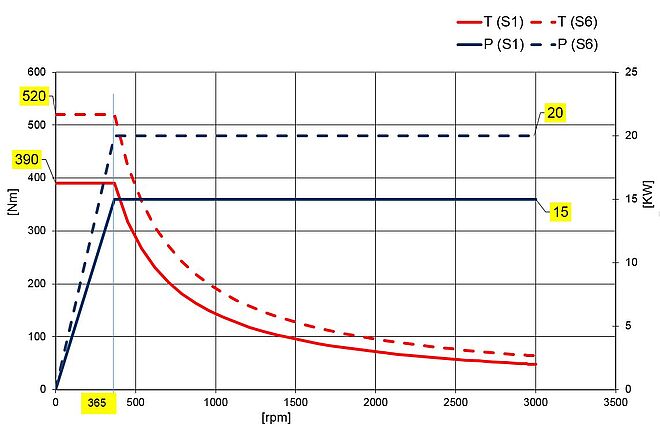

Power Diagram for Milling head with extended spindle
View image

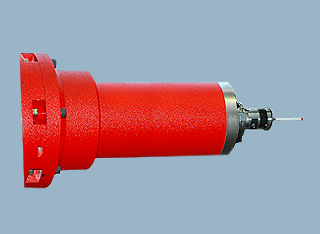

Milling head with extended spindle

  • 3000 rpm
  • 15 kW (S1)
  • 190 Nm (S1)
View image

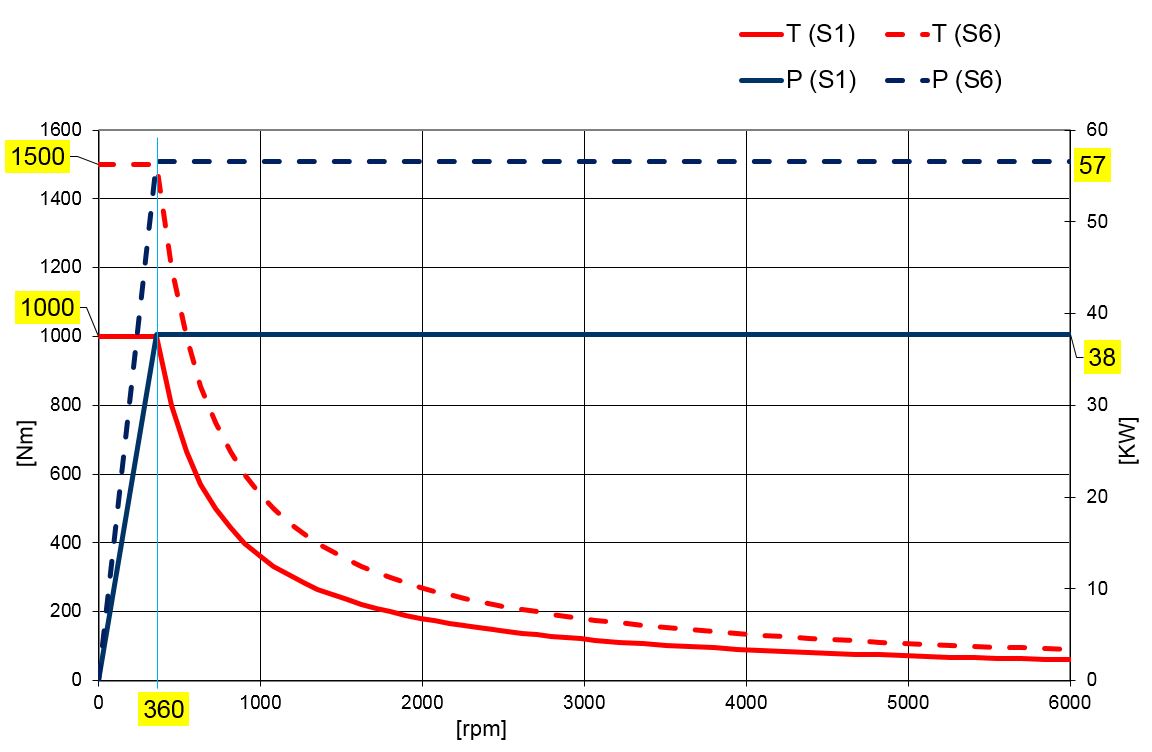

Power Diagram

Power Diagram for Full 5 axis universal milling head
View image

Full 5 axis universal milling head

  • 6000 rpm
  • 38 kW (S1)
  • 1000 Nm (S1)
View image

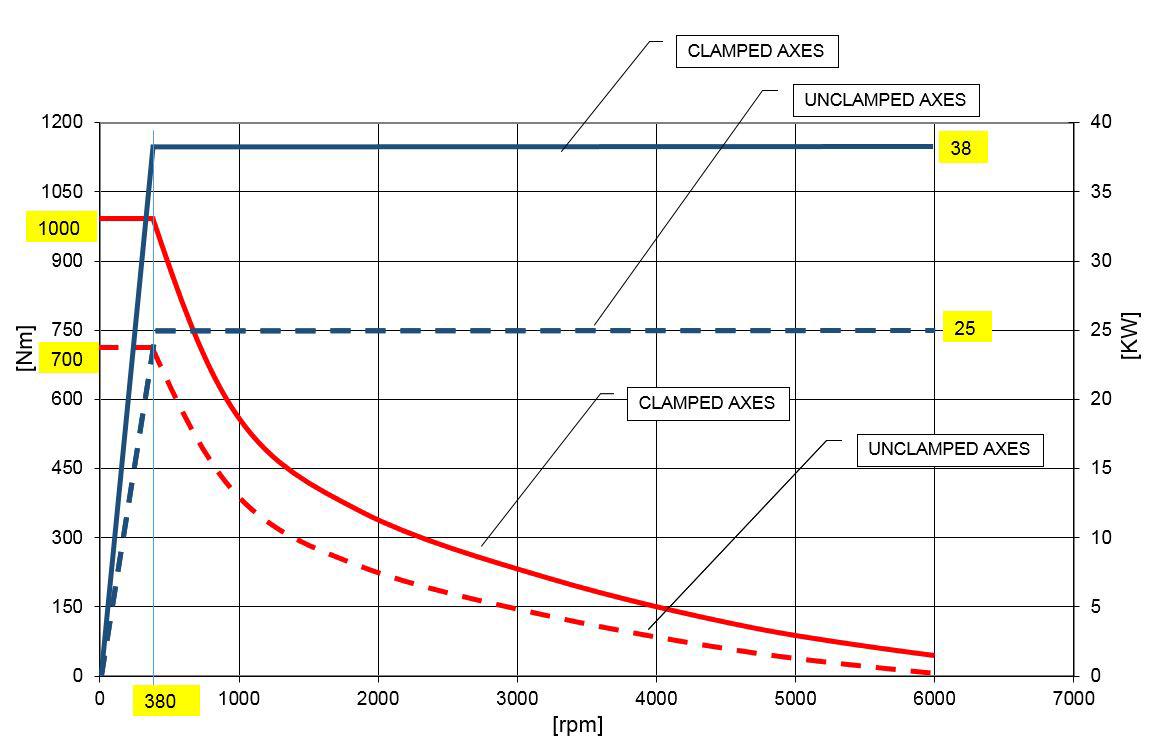

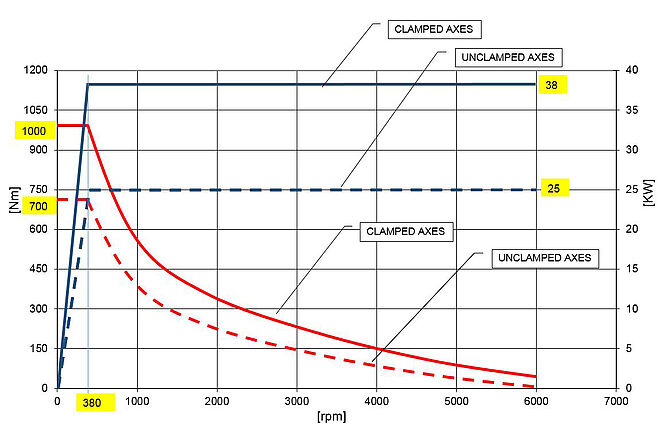

Power Diagram

Power Diagram of Universal Milling head with automatic millesimal positioning
View image

Software/Control

Sinumerik ONE with Operate

The Sinumerik ONE is the universal and flexible CNC system. With a wide range of functionality, it is suitable for use in almost all technologies. The Sinumerik ONE sets standards in terms of dynamics, precision and integrability in networks.

With the Sinumerik ONE you rely on:

  • highest performance and flexibility
  • universal openness
  • highly effective personal and machine protection

Sinumerik & EMCONNECT, the digital process assistant
EMCONNECT is included in the standard machine. Switching between emcoNNECT apps and the control system is possible with a single click. All production-relevant data can be displayed in full-screen or sidebar view.

The new SINUMERIK ONE has been specially developed for smart manufacturing.

  • Digital twin is an integral part of the CNC control, virtual and real control merge and complement each other
  • Significant reduction in product development and time-to-market thanks to the digital first strategy
  • Improved networking and data communication capabilities
  • Significant reduction in the duration of real commissioning through virtual preparation for commissioning
  • Significantly increased CNC performance
  • Significantly shorter non-productive times and complete integration into the TIA Portal through the integrated SIMATIC S7-1500F PLC

This means that the SINUMERIK ONE can be seamlessly integrated into digital solutions and workflows.

Show details Hide details
Heidenhain TNC 640 HSCI

The Heidenhain control unit is designed to simplify programming in the shop floor, providing an interactive programming environment, where the operator communicates with the control system through clear and easily comprehensible language.

The Heidenhain control unit is compatible with DIN/ISO programming standards.

Show details Hide details

Download

Milling_Machine_DYNAMILL.pdf

06.04.2023
Preview Download

Fraiseuse_a_portique_Dynamill.pdf

19.01.2023
Preview Download
