Emcomill E350
Emcomill E350
[Translate to en:]

Emcomill E350

EQUIPMENT

CNC Milling Machine with mechanical spindle
20-fold tool magazine
Fast two-arm changer
Optionally dividing unit (4th axis)
Siemens and Heidenhain control

Technical data

Work area
Travel in X/Y/Z 350/250/300 mm
Distance spindle nose 120-420 mm
Rapid motion speeds in X/Y/Z 24/24/24 m/min
Clamping area 520x300 mm
Max. table load 100 kg
Tool change
Number of tool stations 20
Tool changing time (tool to tool) 2,5 s
Max. tool diameter 63 (80) mm
Max. tool length 200 mm
Milling spindle
Max. speed 10000 rpm
Max. drive power 6,8 kW (S1)
Max. torque 34 Nm (S6 60%)
General data
Dimensions (LxWxH) 1600x1700x2200 mm
Machine weight 1970 kg

Highlights

  • CNC Milling Machine with highest thermostability and optimal machining accuracy

  • Cutting-edge control technology from Siemens with JobShop programming software

  • Very attractive price-performance ratio

  • Top European quality – Made in the Heart of Europe

Tool change EMCOMILL E350

Tool change
View image

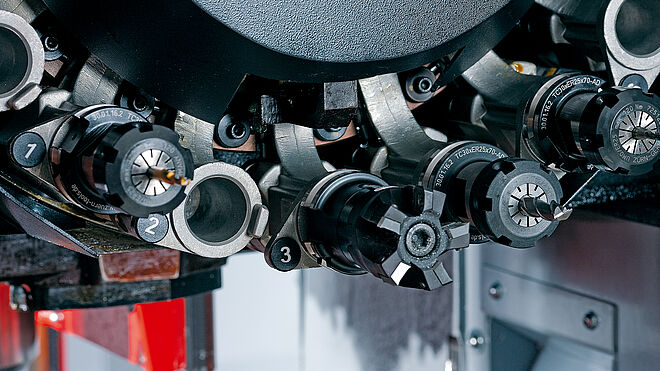

DRUM-TYPE MAGAZINE

with 20 tool positions.
View image

Overall dimensions/Work space

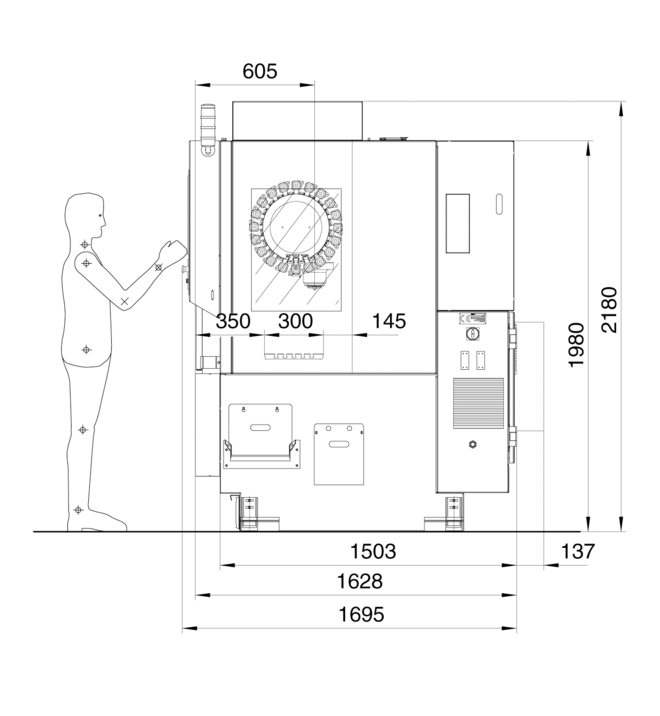

Floor plan EMCOMILL E350 Front

Floor plan frontal view Emcomill 350
View image

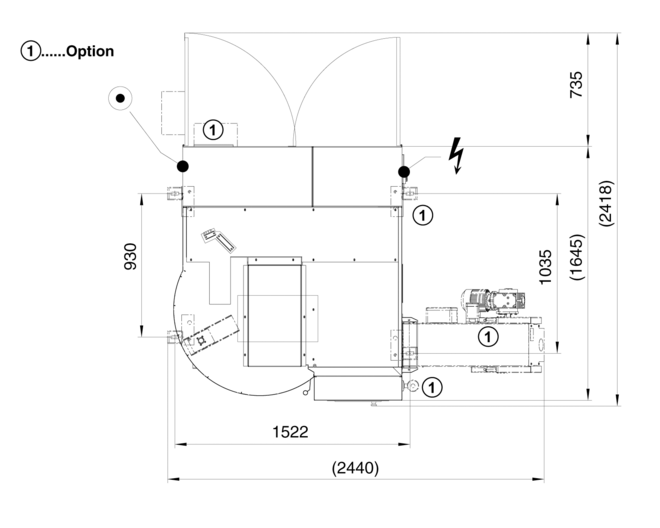

Floor plan EMCOMILL E350 Side

Floor plan side view Emcomill 350
View image

Work area EMCOMILL E350

Work area EMCOMILL E350
View image

Workpieces

Examples of use

  • For small to medium lot sizes

Cylinder Head

(Steel)
View image

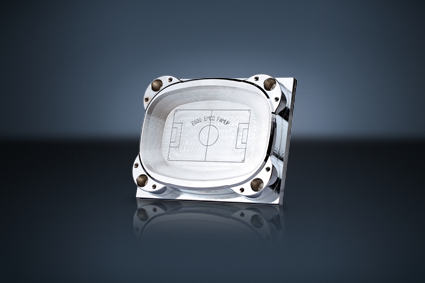

Demo part

(Steel)
View image

Options/Accessories

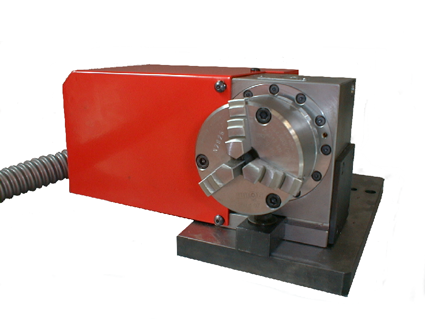

Dividing unit

A dividing head representing the 4th axis is available.
View image

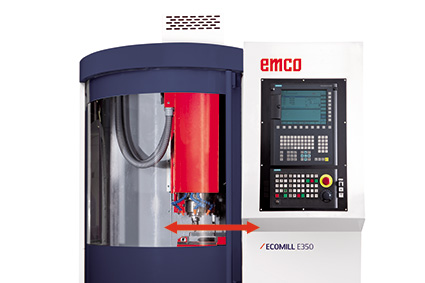

Automatic door

View image
EMCO tool breakage monitoring system

EMCO tool breakage monitoring system

The tool status is monitored by evaluating the load on the various axis drive motors. Excessive loads point to wear or broken tools. Too low a load indicates a tool is missing.

View image EMCO tool breakage monitoring system
Electronic hand wheel

Electronic hand wheel

For moving the machine’s axes manually.

View image Electronic hand wheel

Software/Control

Sinumerik 828D - incl. ShopMill

SINUMERIK 828D: High performance CNC control for ultimate accuracy and machining speed SINUMERIK 828D and SINAMICS drive and motors are perfectly tailored for state of the art milling machines. Powerful CNC-functions combined with a unique 80bit NANOFP Accuracy (80 bit floating point accuracy from the position control to the internal encoder resolution) enable highest work-piece accuracy at a minimum of machining time. With a flexible CNC programming language and the state of the art ShopMill machining step programming, single parts as well as large batch series can be programmed and machined with maximum effectiveness. Due to Advanced Surface, an innovative method of velocity and path control, SINUMERIK 828D also meets the demands of high sophisticated mold & die applications. Source picture and text: Siemens

Show details Hide details

Download

CNC_Milling_Machine_EMCOMILL_E350.pdf

07.09.2023
Preview Download

EMCO_Medical_Technology_EN.pdf

17.09.2024
Preview Download

Lekarska_Technologie_CZ.pdf

17.09.2024
Preview Download

Technologia_Medyczna_PL.pdf

17.09.2024
Preview Download

Technologie_Medical_FR.pdf

17.09.2024
Preview Download
