Gantry Milling Machine Megamill
Gantry Milling Machine Megamill

Gantry Milling Machine Megamill

Universal Machining Centre for the 5-axis machining of tool steel, steel, aluminum and composite materials.

EQUIPMENT

Universal Machining Centre with welded steel construction, high-precision rack and pinion drive with zero clearance in the X- and Y-axes
Z-axis slide in box-in-box design
Thermo-symmetric construction and eightfold bearing of the Z-axis slide
Linear roller guides with zero clearance in all linear axes for high position accuracy
Main spindle motor: 40 kW / 1200 Nm
Mechanical milling heads: infinitely variable positioning and simultaneous
Heads with electrospindle: infinitely variable positioning and simultaneous
Automatic head changer and tool changing systems
Gantry Milling Centre with numeric control: Heidenhain or Siemens

Technical data

Work area
Travel in X/Y/Z X:7500 mm and more, Y:4000-5000-6000-7000 mm, Z: 1500-2000-2500 mm
Axes feed rate 30 m/min
Number of axes (basic machine) 2+3
Motor spindle
Drive power 40 kW
Max. Torque 1200 Nm

Highlights

  • Gantry Milling Machine excellent in movement and cutting

  • 30 m/min in machining and rapid

  • High torque and power: 1200 Nm / 40 kW

  • Universal Machining Centre perfect for mold and dies in the automotive industry and large workpieces in the aerospace industry

Overall dimensions/Work space

Application Cases

mould & die

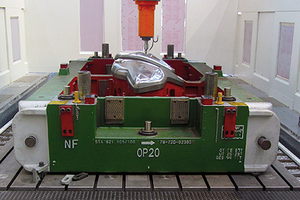

Mechanical processing of a chairlift frame

aerospace

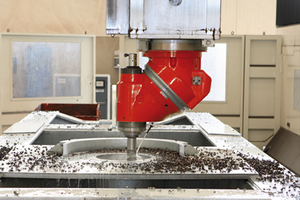

Machining of a sheet metal mold through a vertical head with electrospindle

styling

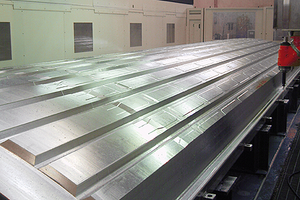

Final machining of an aluminium fuselage for the aerospace industry

Software/Control

Siemens 840D sl for Mecof

The NC Siemens 840D Solution Line allows the optimization of the control and drivers parameters to get the highest performances during the high speed machining.

Show details Hide details
Heidenhain TNC 640 HSCI

The Heidenhain control unit is designed to simplify programming in the shop floor, providing an interactive programming environment, where the operator communicates with the control system through clear and easily comprehensible language.

The Heidenhain control unit is compatible with DIN/ISO programming standards.

Show details Hide details
