Highlights
Tool magazine
Available with turret configuration on 3-, 4- and 5-axis version, or with alongside columnconfiguration on 4- and 5-axis version. Tool change on turret configuration with dual arm grippers at the X-axis limit, with 40 tool stations (optional 80). Tool change on the alongside configuration fast and safe, all along the X-axis and at the extreme limit of the Z- and Y-axis. Up to 120 tool stations. An external tool changer „tower“ is available upon request.
Millingspindle
The machine is equipped with a liquid cooled motor spindle with compelling performance specs. At spindle speeds of 15000 rpms, a power rating of 46 kW, and a torque of 170 Nm, the machine is also suited for heavy-duty machining. A motor spindle 18000 rpm is available with HSK A63.
Z-axis travel
In order to attain precision Z-axis rapid travel at speeds of 40 m/min, and due to its largemass, this axis is powered by two ball screw drives and two motors in a master-slave configuration.
Y-axis
The Y-axis has a ram configuration. This design uses long way guides in order to attain the required rigidity. Its high precision is guaranteed by the motor installed direct drive on the screw.
Machine frame
The machine bed is made of welded high quality steel. This ensures the required rigidity of the machine base, and also facilitates vibration dumping.
X-axis
Equipped with rotating nut ballscrew and fixed screw. The positioning accuracy is guaranteedby the standard linear scale.
Control unit
The operator panel can travel, rotate and be adjusted in the direction of the work space.This ergonomic design provides ideal working conditions for the operator.
B-axis
The B-axis is driven by a torque motor, therefore achieving highly dynamic axis travel withinthe pivoting range of +/- 120 degrees.
Overall dimensions/Work space
Options/Accessories
MEASUREMENT SYSTEM

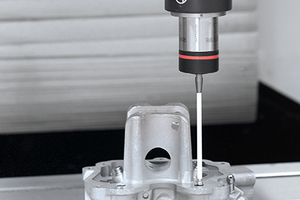

Tools measurements to reduce setup times during tool changes, as well as work piece measurements to verify dimensions or to find zero locations. The work piece measurement is radio.
Large Work Area
Thanks to the large work area, it is possible to customise the machine with a wide variety of options, e.g. with a partition for pendulum operation, a rotary table, a tailstock etc.
Band filter system with high-pressure coolant pumps
A coolant pressure of 25/40/60/80 bar can be set as necessary. This enables coolant-fed drilling and milling tools to be used to their best advantage.
Software/Control
Sinumerik ONE with Operate
Heidenhain TNC 640 (MMV series)
