Turning with EMCO lathes

Turning with EMCO lathes

The diverse EMCO turning machine series offer professional solutions for every demand.

Hyperturn

For complete machining of complex workpieces up to Ø 1000 mm (28.0''); spindle diameter 45 (1.77"), 65 (2.56"), 76 (2,99"), 102 (4.01'') mm.

Hyperturn 200 Powermill

  • Swing diameter 1050 mm
  • Max. Turning diameter 1000 mm
  • Max. Spindle speed 1800 rpm
  • Max. power 84 kW

Hyperturn 100 Powermill

  • Swing over bed 800 mm
  • Max. turning diameter 720 mm
  • Max. spindle speed 3500 // 2500 rpm
  • Max. drive power, main spindle 33 / 53 kW

Hyperturn 65 Powermill High Performance

  • Max. bar stock diameter 65 (76,2/95) mm
  • Max. turning diameter 500 mm
  • Max. speed 0 – 5000 (4000/3500) U/min
  • Drive power 29 (37) kW

Hyperturn 65 Powermill G2

  • Max. bar stock diameter 65 (102) mm
  • Max. turning diameter 500 mm
  • Max. speed 5.000 (4.000) rpm
  • Drive power 29 / 38 kW

Hyperturn 65 Powermill

  • Max. bar stock diameter 65 (76,2 / 95) mm
  • Chuck size 250 mm
  • Max. speed 5000 (4000 / 3500) rpm
  • Drive power Main-counter spindle 29 (37) / 29 kW
  • Automation with bar- or gantry-loader, unloading through the counter spindle

Hyperturn 110

  • Max. bar stock diameter 110 mm
  • Chuck size 500 mm
  • Bed length 1700 mm/2300 mm
  • Max. speed 2500 rpm
  • Max. drive power 52 kW

Hyperturn 95

  • Max. bar stock diameter 95 mm
  • Chuck size 315 mm
  • Bed length 1700 mm/ 2300 mm
  • Max. speed 3500 rpm
  • Max. drive power 33 kW

Hyperturn 65

  • Max. bar-stock diameter 65 (76,2 / 95) mm
  • Chuck size 250 mm
  • Max. speed 5.000 (4.000/3.500) rpm
  • Max. drive power 29 / 37 kW
  • Bar loaders

Hyperturn 50

  • Max. bar stock diameter 51 (65) mm
  • Chuck size 160 mm
  • Max. spindle speed 0-7000 (5000) rpm
  • Drive power 15 (18) kW
  • Bar and swing loader

HYPERTURN 45

  • Max. bar stock diameter 45 (51) mm
  • Chuck size 160 mm
  • Max. spindle speed 7,000 rpm
  • Drive power 15 kW
  • Bar loader, swing loader or gantry loader


Maxxturn

CNC high-perfomance turning centers for flexible machining of chuck, shaft and bar stock parts; size of workpieces up to Ø 1000 mm, spindle bore: Ø 25 to 165 mm

Maxxturn 200

  • Max. bar stock diameter 165 x 1200 mm
  • Max. chuck size 400 / 500 / 630 mm
  • Max. speed range 1800 / 2500 rpm
  • Drive power main spindle 84 / 53 kW
  • Drive power turret 19,8 kW

Maxxturn 110

  • Max. bar stock diameter 110 mm
  • Chuck size 315/400 (500) mm
  • Max. speed range 3500 / 2500 rpm
  • Drive power main spindle 33 / 42 kW
  • Drive power turret 10 kW

Maxxturn 95

  • Max. bar stock diameter 95 mm
  • Chuck size 315 mm
  • Max. speed range 3500 (2500) rpm
  • Drive power main spindle 33 (42) kW
  • Drive power turret 8 kW

Maxxturn 65 G2

  • Max. bar stock diameter 65 (76,2/95) mm
  • Chuck size 250 (325) mm
  • Max. speed range 5000 (4000 / 3500) U/min
  • Drive power main spindle 29 (29/37) kW
  • Drive power turret 6,7 / 6,7 kW

Maxxturn 65-1000

  • Max. bar stock diameter 65 (76,2/95) mm
  • Chuck size 250 mm
  • Max. speed range 5000 (4000/3500) rpm
  • Drive power main spindle 29 (37) kW
  • Drive power turret 6.7 kW

Maxxturn 45 G2

  • Max. bar stock diameter 45 (51) mm
  • Chuck size 160 mm
  • Max. speed range 7000 prm
  • Drive power main spindle 15 kW
  • Drive power turret 4 kW

Maxxturn 25

  • Max. bar stock diameter 25 mm
  • Chuck size 95 mm
  • Max. speed 8000 rpm
  • Drive power main spindle 6.5 kW
  • Drive power tool turret 1.2 kW


Vertical Turn VT

For the machining of chuck parts up to ø 400 mm

Emco Vertical VT 400

  • Max. turning diameter 400 mm
  • Max. chuck diameter 400 mm
  • Max. spindle speed 4000 rpm
  • Drive power main spindle 36 kW
  • Drive power turret 8,5 kW

Emco Vertical VT 260

  • Max. turning diameter 260 mm
  • Max. chuck diameter 260 mm
  • Max. spindle speed 5000 rpm
  • Drive power main spindle 29 kW
  • Drive power turret 8.5 kW

Emco Vertical VT 160

  • Max. turning diameter 160 mm
  • Max. chuck diameter 160 mm
  • Max. spindle speed 7000 rpm
  • Drive power main spindle 21 kW
  • Drive power turret 6.7 kW


Emcoturn

Modular CNC turning machines for economic machining of chuck, shaft and bar stock parts; size of workpieces up to Ø 1000 mm, spindle bore Ø 25 to 206 mm

Emcoturn E65

  • Max. bar stock diameter 65 (95) mm
  • Max. chuck size 200 (250) mm
  • Max. speed 5000 (3500) rpm
  • Max. drive main spindle 22 (23,7) kW
  • Max. drive turret 6,7 kW
  • Y axis + / - 40 mm

Emcoturn E45

  • Max. bar stock diameter 45 (51) mm
  • Max. machining diameter 220 mm
  • Max. speed 6300 (5000) rpm
  • Driven main spindle 13 kW
  • Driven turret 4 kW

Emcoturn E25

  • Max. bar stock diameter 25,4 mm
  • Max. chuck size 95 mm
  • Max. speed 6300 rpm
  • Drive main spindle 5.5 kW
  • Drive turret 1.2 kW

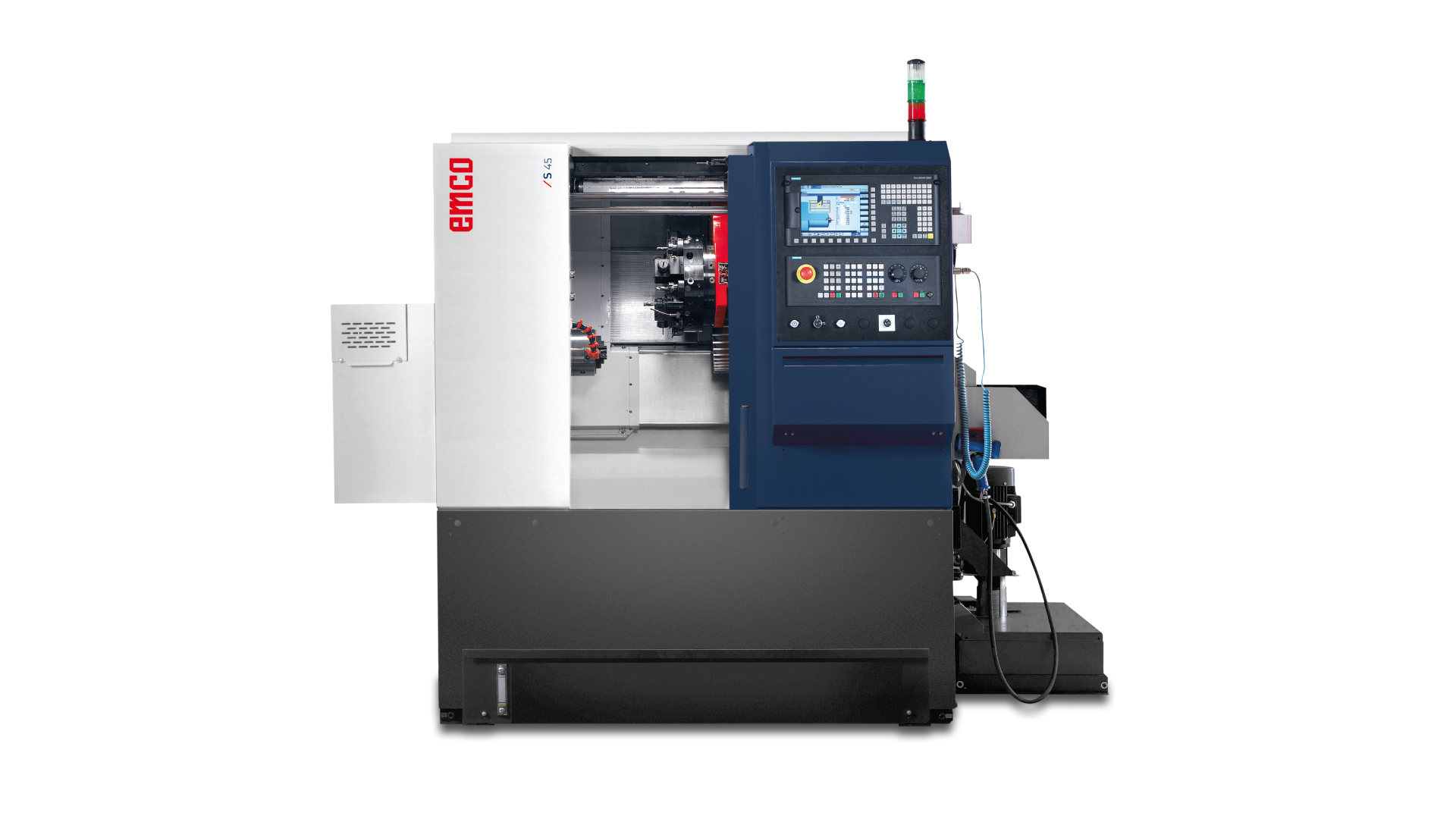

S45_S65

2-axis CNC turning machine with driven tools and tailstock (optionally available without tailstock), for bar and chuck machining, equipped with Siemens or Fanuc control technology.

CNC-Lathe S65

  • Diameter Bar Stock 65 mm / Chuck Parts 310 mm
  • Speed Range 0-4200 U/min
  • Drive Performance 18 kW
Request a quote

CNC-Lathe S45

  • Max. Diameter Bar parts 45 mm / Chuck parts 220 mm
  • Speed Range 0-6300 U/min
  • Drive Performance 11 kW
Request a quote


Emcomat

Universal lathes

Conventional lathes
Center height: 140 to 200 mm (5.51 to 8.87'')
Center distance: 650 to 1000 mm (25.59 to 39.37'')

Emcomat-20 D

  • Distance above centers 200 mm
  • Distance between centers 1000 mm
  • Spindle bore Ø 50 mm
  • Max. speed 3000 rpm
  • Max. drive performance 5.3 kW

Emcomat-17 D

  • Distance above centers 170 mm
  • Distance between centers 700 mm
  • Spindle bore Ø 50 mm
  • Max. speed (17S) 2350 rpm
  • Max. speed (17D) 3000 rpm
  • Max. drive performance (17S) 3.2 kW
  • Max. drive performance (17D) 5.3 kW

Emcomat-14 D

  • Distance above centers 140 mm
  • Distance between centers 650 mm
  • Spindle bore Ø 40 mm
  • Max. speed 4000 rpm
  • Max. drive performance 7.5 kW


Universal turning machines with cycle control

Precision cycle controlled lathes
Center height: 200 to 510 mm (6.30 to 20.08'')
Center distance: 1000 to 6000 mm (39.37 to 236.22'')

Emcomat E-200 MC

  • Distance between centers 1000 mm
  • Distance above centers 200 mm
  • Spindle bore Ø 50/53 mm
  • Max. speed 4000 rpm
  • Drive performance 7.5 / 10kW
